iTP-60
A transfer press for the production of lithium-ion battery cases (battery case 21700) and similar products with increased rigidity thanks to its semi-straight frame and enhanced blanking and cupping stability with the use of a direct-acting vertical transfer system.
| iTP-60 | |||
| Rated capacity | kN | 600 | |
|---|---|---|---|
| Recommended working load | kN | 420 | |
| Ram stroke | mm | 180 | |
| Shut height | mm | 510 | |
| Main motor | Kw | 15(4P) | |
| Strokes per minute (no load) | min-1 | 40-150 | |
| Dimension | Height | mm | 3,650 |
| Width | mm | 3,230 | |
| Depth | mm | 1,710 | |
| Weight | ton | 17 | |

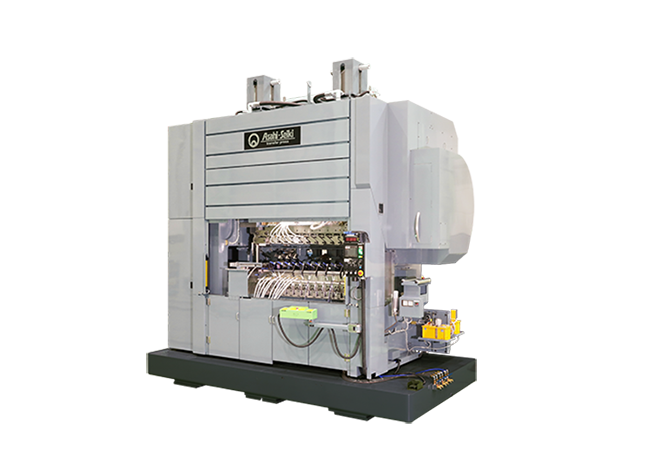

iTP-60W
Increased rigidity thanks to its semi-straight frame and enhanced blanking and cupping stability with the use of a direct-acting vertical transfer system.
This large machine is equipped with 3 additional wide ram stations and a longer ram stroke (+50 mm) compared to the iTP-60 model.
| iTP-60W | |||
| Rated capacity | kN | 600 | |
|---|---|---|---|
| Recommended working load | kN | 420 | |
| Ram stroke | mm | 230 | |
| Shut height | mm | 565 | |
| Strokes per minute (no load) | min-1 | 20-70 | |
| Dimension | Height | mm | 3,841 |
| Width | mm | 3,540 | |
| Depth | mm | 1,900 | |
| Weight | ton | 28 | |
LTP-45
A transfer press for high-speed production of lithium-ion battery cases (case 18650) is equipped with linear guides.
| LTP-45 | |||
| Rated capacity | kN | 450 | |
|---|---|---|---|
| Recommended working load | kN | 315 | |
| Ram stroke | mm | 180 | |
| Shut height | mm | 470 | |
| Strokes per minute (no load) | min-1 | 60-170 | |
| Dimension | Height | mm | 3,380 |
| Width | mm | 2,870 | |
| Depth | mm | 1,780 | |
| Weight | ton | 13 | |
BTP-30
A high-speed transfer press optimal for deep drawing of cylindrical products such as alkaline battery cases.
| BTP-30 | |||
| Rated capacity | kN | 300 | |
|---|---|---|---|
| Recommended working load | kN | 200 | |
| Ram stroke | mm | 130 | |
| Shut height | mm | 362 | |
| Strokes per minute (no load) | min-1 | 50-250 | |
| Dimension | Height | mm | 2,640 |
| Width | mm | 2,210 | |
| Depth | mm | 1,470 | |
| Weight | ton | 6 | |
STP-45
A transfer press equipped with a straight side frame realizing accuracy at lower dwell and a casting iron 6-surface guide.
| Model | STP-25 | STP-45 | STP-45D | ||
| Rated capacity | kN | 250 | 450 | 450 | |
|---|---|---|---|---|---|
| Recommended working load | kN | 160 | 300 | 300 | |
| Standard ram stroke | mm | 52 | 65 | 127 | |
| Max. ram stroke | mm | 77 | 100 | ー | |
| Shut height | mm | 295 | 350 | 410 | |
| Strokes per minute (no load) | min-1 | 50-200 | 40-150 | 40-150 | |
| Dimension | Height | mm | 2,530 | 3,090 | 3,300 |
| Width | mm | 2,006 | 2,610 | 2,610 | |
| Depth | mm | 1,390 | 1,810 | 1,810 | |
| Weight | ton | 4.8 | 10 | 11 | |
TP-75
TP-25
TP-45
Standard models of transfer presses with an extensive track record.
| Model | TP-15 | TP-25 | TP-45 | TP-45D | TP-75 | TP-65D | TP-100 | TP-150 | ||
| Rated capacity | kN | 150 | 250 | 450 | 450 | 750 | 650 | 1,000 | 1,500 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Recommended working load | kN | 90 | 160 | 300 | 300 | 550 | 450 | 700 | 1,050 | |
| Standard ram stroke | mm | 38.1 | 50.8 | 63.5 | 127 | 76.2 | 177.8 | 152 | 152 | |
| Max. ram stroke | mm | 50.8 | 76.2 | 101.6 | ー | 127 | 203.2 | 178 | ー | |
| Shut height | mm | 219.1 | 254 | 330.2 | 387.4 | 457.2 | 508 | 550 | 540 | |
| Strokes per minute (no load) | min-1 | 50-250 | 50-200 | 40-150 | 40-150 | 25-100 | 25-100 | 25-70 | 20-60 | |
| Dimension | Height | mm | 2,000 | 2,210 | 2,590 | 2,680 | 3,020 | 3,840 | 4,100 | 4,800 |
| Width | mm | 1,440 | 1,670 | 2,280 | 2,300 | 2,930 | 3,120 | 3,700 | 3,930 | |
| Depth | mm | 1,780 | 1,850 | 1,410 | 1,380 | 1,480 | 2,050 | 2,000 | 2,750 | |
| Weight (including die set) | ton | 1.5 | 2.7 | 5.5 | 6 | 10.2 | 18 | 28 | 45 | |
Development of tooling generally involves repeated cycles of design, manufacture, trial, and improvement processes that depend highly on the experience of the engineers.
However, our company could greatly increase the efficiency of design of tooling and manufacturing processes using virtual prototyping (VP) technology.
We are able to meet our customer's demand for the comprehensive services from installation of tooling to the machine and adjustment,to delivery of the production.
F3
Camless CNC multi forming machine
| Item | F3 | |
| Machine | Dimensions(mm) | W2,700 x D1,200 x H2,450 |
|---|---|---|
| Weight (kg) | 3,500 | |
| Material | Width(mm)xthickness(mm) | Max. 50 x 1.5 |
| Wire diameter(mm) | Max. φ3.0 | |
| Feeding device | Feeding type | CNC gripper feeder |
| CNC roll feeder | ||
| Feeding accuracy(mm) | 0.01 | |
| Feeding length(mm) | Max. 200 | |
| Forming slide | Bending stroke(mm) | Max. 50 |
| Forming capacity(kN) | Max. 15 | |
| Number of slides | Max.11(Standard 6) | |
| Layout | 30° | |
| Rear slide | Stroke(mm) | Max. 50 |
| Forming capacity(kN) | 10 | |
| Number of slides | Max.2(Standard 1) | |
| Press | Stroke(mm) | 10 |
| Capacity(kN)/Die height(mm) | 80 / 150 | |
