Product overview
TRES Universal Assist slide added as an optional unit. T2 offers the best specifications from a wide range of options to meet all the processing requirements for spring forming.
Spring forming machines
- Machines
- Spring forming machines
Specifications
| T2 | ||
| Wire diameter(mm) | φ0.6-2.0 | |
|---|---|---|
| Spring index(D/d) | 4 or more | |
| External interface | USB connector | |
| External dimensions(mm) | Height | 1,670 |
| Width | 1,150 | |
| Depth | 2,100 | |
| Weight(kg) | 2,500 | |
*The external dimensions and weight are changeable depending on the selected options.
T4
Product overview
The standard model is equipped with a universal slide, a multi slide, and a cut slide. High reproducibility and cost reduction are achieved with a minimum of tools.
Download catalog
Specifications
| T4 | ||
| Wire diameter(mm) | φ1.0-4.0 | |
|---|---|---|
| Spring index(D/d) | 4 or more | |
| External interface | USB connector | |
| External dimensions(mm) | Height | 1,850 |
| Width | 1,470 | |
| Depth | 3,300 | |
| Weight(kg) | 3,500 | |
*The external dimensions and weight are changeable depending on the selected options.
USF Series
USF-PC1
Product overview
The standard model is equipped with the Universal Forming Unit that allows forming from any angle. The wire material is not twisted, which minimizes the impact of its tendencies.
Download catalog
Specifications
| USF-PC1 | ||
| Wire diameter(mm) | φ0.15-0.8 | |
|---|---|---|
| Spring index(D/d) | 4 or more | |
| External interface | USB connector | |
| External dimensions(mm) | Height | 2,000 |
| Width | 700 | |
| Depth | 1,550 | |
| Weight(kg) | 1,000 | |
USF-PC2
Product overview
The standard model is equipped with the Universal Forming Unit that allows forming from any angle. The wire material is not twisted, which minimizes the impact of its tendencies.
Download catalog
Specifications
| USF-PC2 | ||
| Wire diameter(mm) | φ0.6-2.0 | |
|---|---|---|
| Spring index(D/d) | 4 or more | |
| External interface | USB connector | |
| External dimensions(mm) | Height | 2,000 |
| Width | 1,400 | |
| Depth | 2,400 | |
| Weight(kg) | 1,300 | |
USF-PC4
Product overview
The standard model is equipped with the Universal Forming Unit that allows forming from any angle. The wire material is not twisted, which minimizes the impact of its tendencies.
Download catalog
Specifications
| USF-PC4 | ||
| Wire diameter(mm) | φ1.0-4.0 | |
|---|---|---|
| Spring index(D/d) | 4 or more | |
| External interface | USB connector | |
| External dimensions(mm) | Height | 2,200 |
| Width | 2,050 | |
| Depth | 2,500 | |
| Weight(kg) | 3,800 | |
Specifications

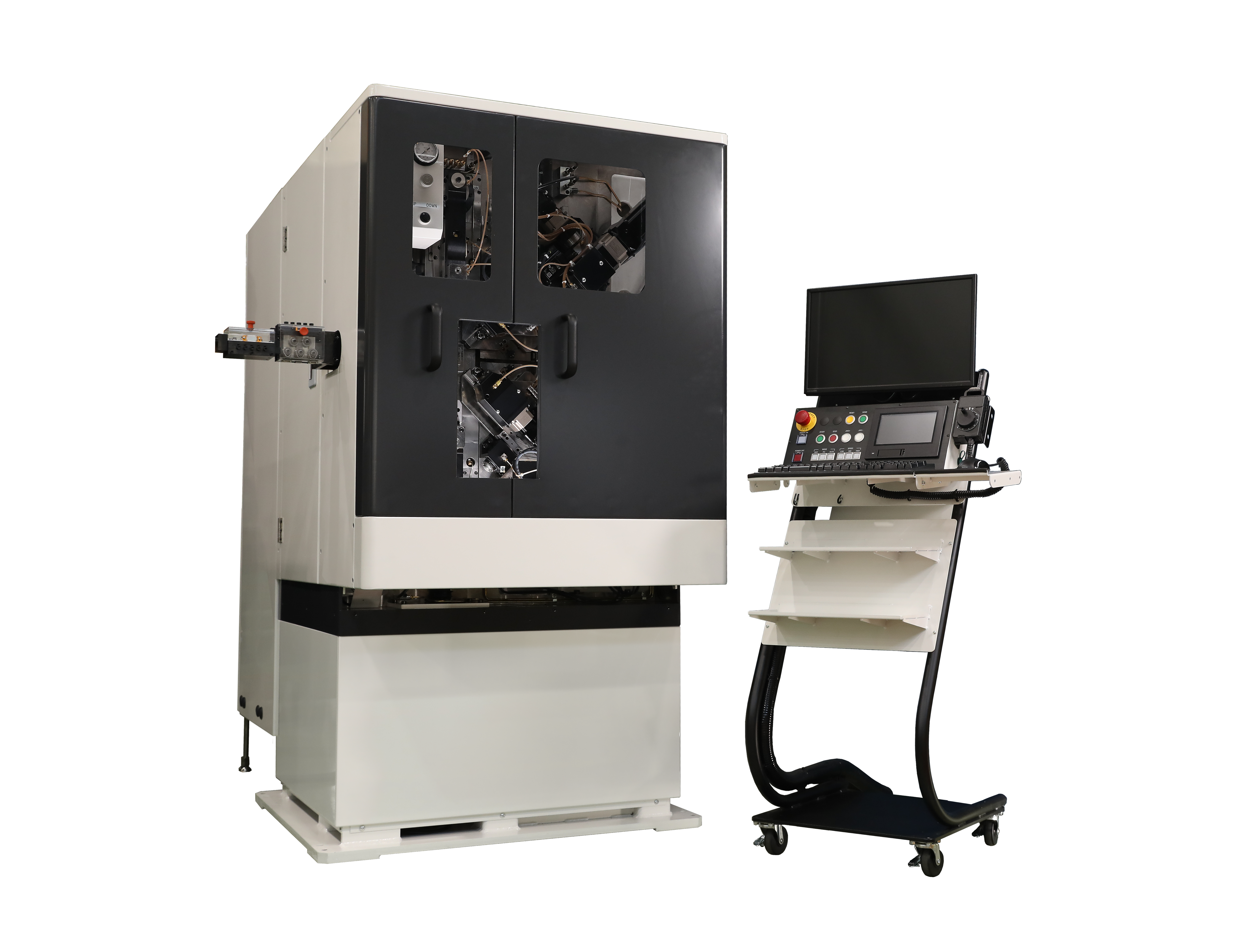

| C2 | ||
| Wire diameter(mm) | φ0.6-2.6 | |
|---|---|---|
| Spring index(D/d) | 3 or more | |
| External dimensions(mm) | Height | 2,000 |
| Width | 2,000 | |
| Depth | 1,800 | |
| Weight(kg) | 2,300 | |
iCF Series
iCF-08
Product overview
A coiling machine shows great cost-saving performance. Increased nondefective rate thanks to the new production control system.
Download catalog
Specifications

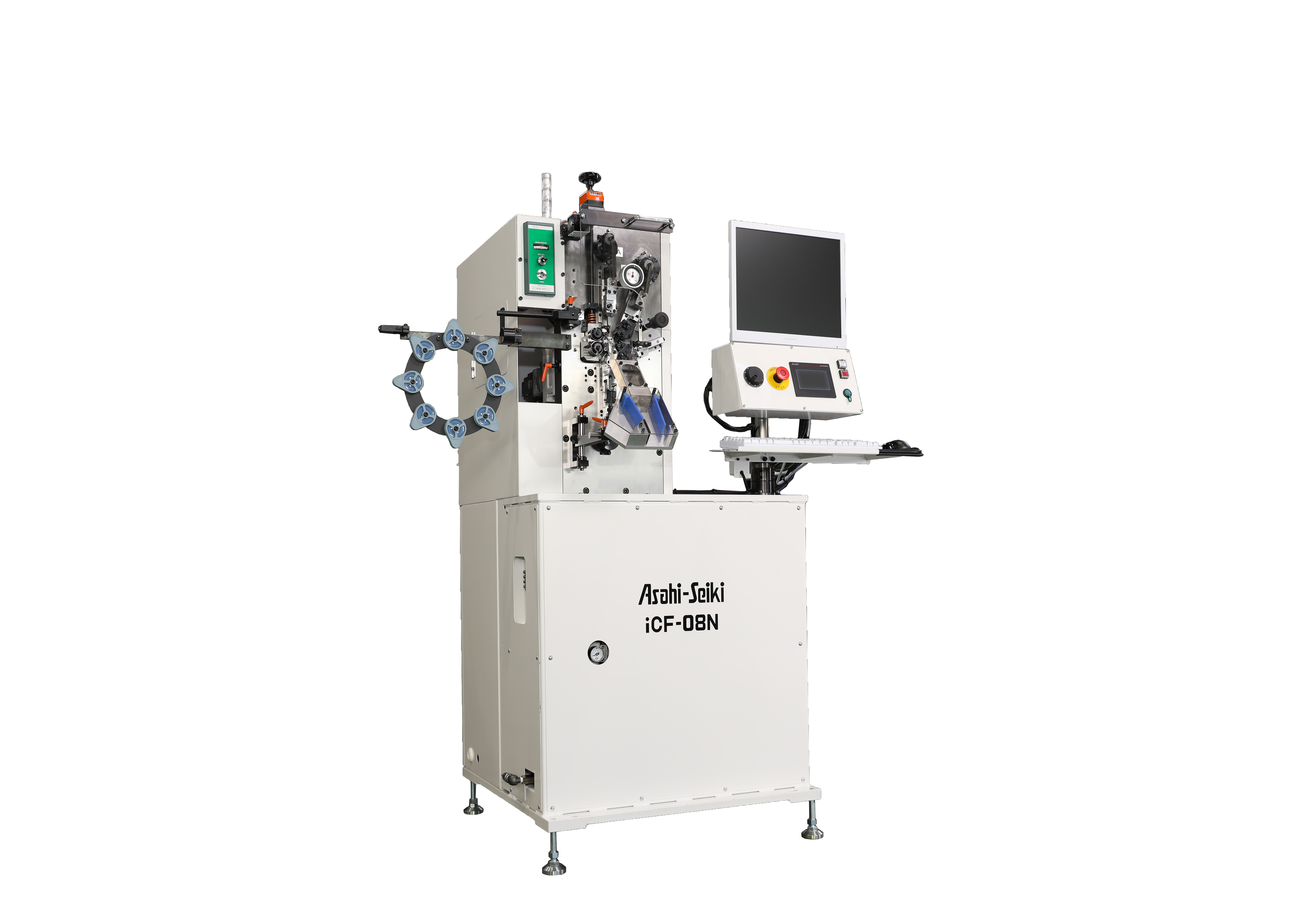

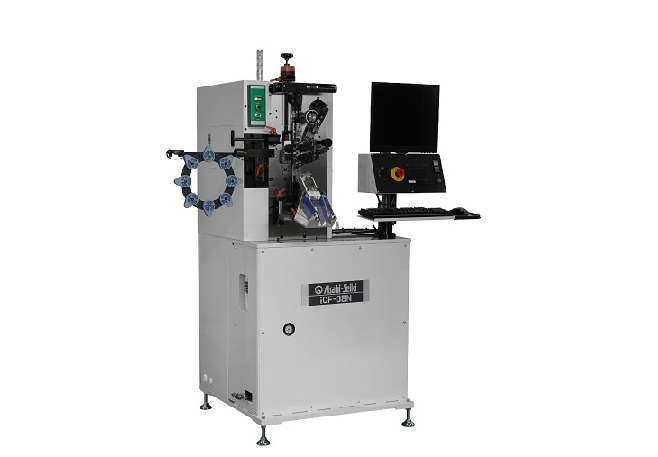

| iCF-08 | ||
| Wire diameter(mm) | φ0.1-0.8 | |
|---|---|---|
| Spring index(D/d) | 3 or more | |
| External recording device | USB connector | |
| External dimensions(mm) | Height | 1,670 |
| Width | 1,150 | |
| Depth | 900 | |
| Weight(kg) | 500 | |
iCF-26
Product overview
A coiling machine showing great cost-saving performance. Increased nondefective rate thanks to the new production control system.
Download catalog
Specifications

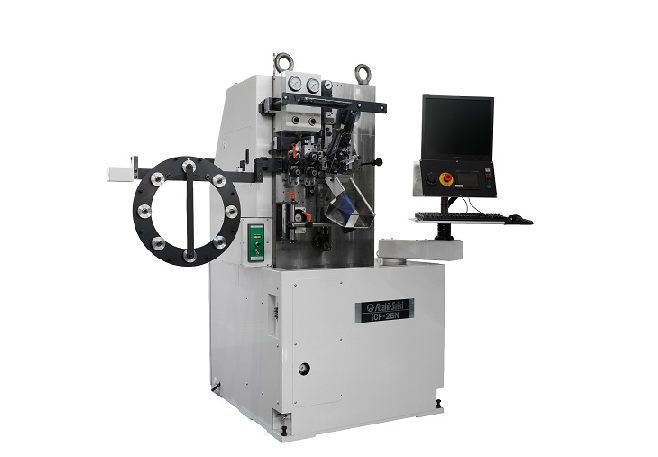

| iCF-26 | ||
| Wire diameter(mm) | φ0.6-2.6 | |
|---|---|---|
| Spring index(D/d) | 3 or more | |
| External recording device | USB connector | |
| External dimensions(mm) | Height | 1,900 |
| Width | 1,400 | |
| Depth | 1,145 | |
| Weight(kg) | 1,000 | |
CFX Series
CFX-1
Product overview
Our standard model of coiling machines. It offers amazing production speed for thin coils.
Download catalog
Specifications
| CFX-1 | ||
| Wire diameter(mm) | φ0.1-0.8(1.0) | |
|---|---|---|
| Spring index(D/d) | 3 or more | |
| External recording device | USB connector | |
| External dimensions(mm) | Height | 1,700 |
| Width | 700 | |
| Depth | 800 | |
| Weight(kg) | 800 | |
CFX-2
Product overview
Our standard model of coiling machines. It supports a wide range of wire diameters.
Download catalog
Specifications
| CFX-2 | ||
| Wire diameter(mm) | φ0.6-2.6 | |
|---|---|---|
| Spring index(D/d) | 3 or more | |
| External recording device | USB connector | |
| External dimensions(mm) | Height | 1,800 |
| Width | 1,100 | |
| Depth | 1,200 | |
| Weight(kg) | 1,500 | |
CFX-5E
Product overview
Our standard model of coiling machines. Reduced adjustment time with the mandrel and the cutting tool located on the same base. Supports also the optional high-speed production specifications (CFX-5Es).
Download catalog
Specifications
| CFX-5E | ||
| Wire diameter(mm) | φ2.0-5.0 | |
|---|---|---|
| Spring index(D/d) | 3 or more | |
| External recording device | USB connector | |
| External dimensions(mm) | Height | 2,200 |
| Width | 2,200 | |
| Depth | 1,000 | |
| Weight(kg) | 3,950 | |
CFX-8E
Product overview
Our standard model of coiling machines. Reduced adjustment time with the mandrel and the cutting tool located on the same base. Guaranteed enough rigidity for processing of medium and thick products.
Download catalog
Specifications
| CFX-8E | ||
| Wire diameter(mm) | φ3.0-8.0 | |
|---|---|---|
| Spring index(D/d) | 3 or more | |
| External recording device | USB connector | |
| External dimensions(mm) | Height | 2,380 |
| Width | 1,910 | |
| Depth | 1,935 | |
| Weight(kg) | 9,000 | |
CFX-12
Product overview
Our standard model of coiling machines. Reduced adjustment time with the mandrel and the cutting tool located on the same base. The setup, which usually takes much time with large machines, is also reduced thanks to the built-in rotary cut mechanism.
Download catalog
Specifications

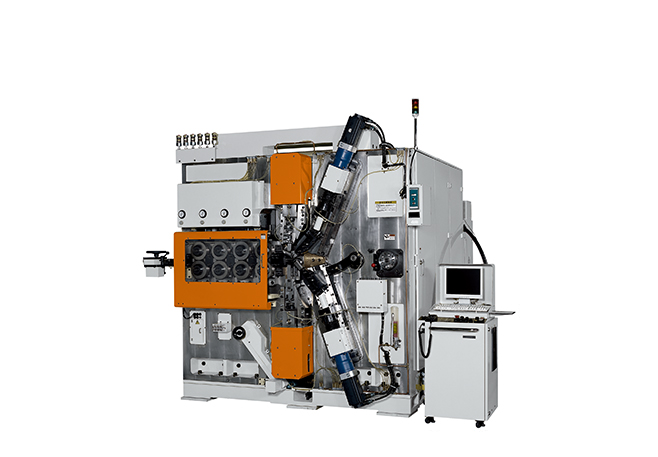

| CFX-12 | ||
| Wire diameter(mm) | φ4.0-12.0 | |
|---|---|---|
| Spring index(D/d) | 3 or more | |
| External recording device | USB connector | |
| External dimensions(mm) | Height | 2,600 |
| Width | 2,400 | |
| Depth | 2,800 | |
| Weight(kg) | Approx. 20,000 | |
AG Series
AG-5E
Product overview
Programed automatic down feed system with a servomotor. In addition to superior grinding precision, the running costs can be reduced thanks to the control of the grinding stone use.
Download catalog
Specifications
| AG-5E | ||
| Wire diameter(mm) | 0.3-5 | |
|---|---|---|
| Coil outside diameter(mm) | MAX.40 | |
| Length of spring (mm) | MAX.160 | |
| Diameter of grinding stone (mm) | 400 | |
| Diameter of supply plate (mm) | 420 | |
| External dimensions(mm) | Height | 2,400 |
| Width | 2,000 | |
| Depth | 950 | |
| Weight(kg) | 1,500 | |
AG-12E
Product overview
Programed automatic down feed system with a servomotor. In addition to superior grinding precision, the running costs can be reduced thanks to the control of the grinding stone use.
Download catalog
Specifications

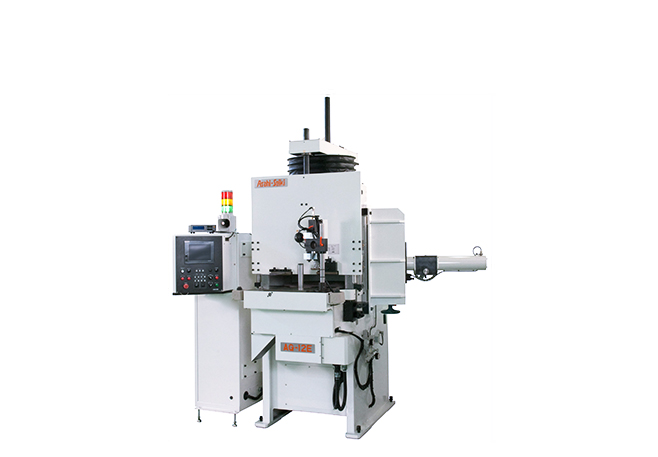

| AG-12E | ||
| Wire diameter(mm) | 3-12 | |
|---|---|---|
| Coil outside diameter(mm) | MAX.120 | |
| Length of spring (mm) | MAX.300 | |
| Diameter of grinding stone (mm) | 660 | |
| Diameter of supply plate (mm) | 580 | |
| External dimensions(mm) | Height | 2,880 |
| Width | 2,400 | |
| Depth | 1,400 | |
| Weight(kg) | 3,500 | |
AG-12HD
Product overview
A machine with a double loading plate for high-speed grinding. In addition to the superior grinding precision available with the standard model, the AG-12HD greatly enhances production efficiency and reduces manual work. The safety is guaranteed thanks to the covers for dustproof and noise reduction.
Download catalog
Specifications
| AG-12HD | ||
| Wire diameter(mm) | 3-12 | |
|---|---|---|
| Coil outside diameter(mm) | MAX.140 | |
| Length of spring (mm) | MAX.400 | |
| Diameter of grinding stone (mm) | 660 | |
| Diameter of supply plate (mm) | 740 | |
| External dimensions(mm) | Height | 3,500 |
| Width | 1,600 | |
| Depth | 3,800 | |
| Weight(kg) | 8,000 | |
KENOH Series
KENOH
Product overview
One-pass grinder with simple specifications and superior cost-saving performance. The customers can use their existing supply plate.
Download catalog
Specifications
| KENOH | ||
| Wire diameter(mm) | 0.5-3 | |
|---|---|---|
| Coil outside diameter(mm) | MAX.40 | |
| Length of spring (mm) | MAX.130 | |
| Diameter of grinding stone (mm) | 400 | |
| Diameter of supply plate (mm) | 420 (400-680) | |
| External dimensions(mm) | Height | 2,100 |
| Width | 670 | |
| Depth | 1,100 | |
| Weight(kg) | 1,100 | |
