Process Details
Forming aluminum wire

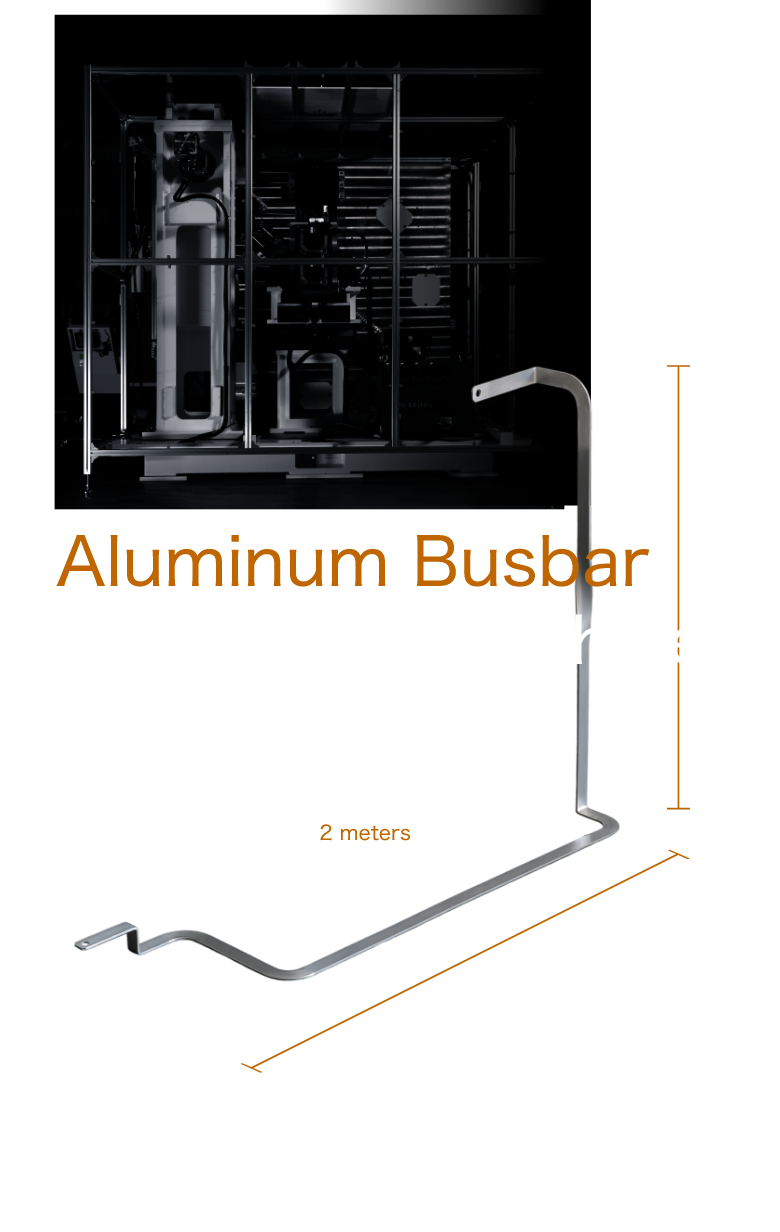

Our machines can form long busbars, using continuous aluminum material. Positioning of the busbars is controlled through an intuitive program, eliminating the need for metal molds and allowing for quick adjustments between different busbar designs.
*T4 Busbar Machine (video). Material: Aluminum (3 × 20mm)
End finish / Termination
Advanced Hole Making and Notching for Busbar Connections
Forming Techniques
*The figures below are reference values, and can fluctuate depending on the material specification.
-
Edgewise bending
-
Minimum Bend Radius =
material width
Example: 20mm width
= R20 min bend
-
Flat bending
-
Minimum Bend Radius =
material thickness
Example: 3mm thickness
= R3 min bend
-
Material size
-
T4 forming machine capacity: 4.2mm × 25mm (thickness ×width). If you require larger material, specialized machine orders are available upon request.
-
Rotate / Twist
-
Twist length =
≥2.5 x material width
Example: 20mm width
= 50mm twist length
-
Radial bulge
-
Controlled bending
(No inner R swelling)
Machine Order Flow
- Tailored Machine Solutions
- Based on the specifications and information you provide, we can deliver the most suitable machines for your needs.
- Placing an Order
- Once your order is placed, our team of proffesionals begins immediately!
- Design, Production
- We custom produce quality processing machines based on your specific order.
- Inspection
- This step ensures your finished machine operates flawlessly and meets all operational standards.
- Delivery
- We ensure prompt, courteous delivery of the machine to the specified location.
Inquiries
We will design and develop processing machines that meet your desired specification.
